Multi-Carb

Series 66C

Material

Cast Iron - Ni-Resist

Part Type

2201-2461

SGS Product

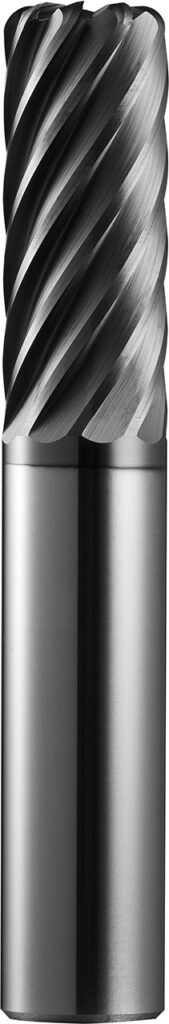

1/2” Dia, 9 Flute, Corner Radius End Mill

Competitor Product

0.5000” Dia. 4 Flute End Mill

Application

Milling: Semi-Rough / Profiling

SGS Tool Information

0.5000” Cutting Dia.
1.2500” Length of Cut
3.0000” Overall Length
TX (Ti-NAMITE-X) Coating

EDP:

36630

Goal

An aerospace parts manufacturer was experiencing poor tool life and requested a tool capable of increasing tool life and decreasing tool cost.

Strategy

The customer was machining the surface of a fixture holding six parts using a Z-Carb high-performance 4-flute end mill at a 0.050” axial depth of cut and seven radial passes. Tool failure was traced to an incorrectly programmed conventional milling path, which was corrected to climb milling. After switching to a 9-flute Multi-Carb end mill, the increased flute count enabled higher feed rates and extended tool life from one load (six parts) to six loads (24 parts).

Result

The implementation of the Multi-Carb resulted in a 75% reduction in the number of tools required. Tool change costs decreased by 75%, and the cost per part was reduced by 56%. Overall, the customer achieved a total cost reduction of 56%, generating annual savings of more than $51,000.

Total Cost Savings

$51,907

Tools Required

75%

Tool Change Cost

75%

Cost Per Part

56%

Tools	Cutting Dia (DC)	RPM	SFM	IPM	IPR	Radial Depth (AE)	Axial Depth (AP)	Coolant
SGS Multi-Carb (9-Flute)	0.5000″	917	120	15.68	0.0171	0.0350″	0.0500″	Flood
Competitor (4-Flute)	0.5000″	911	119	10.93	0.0120	0.0350″	0.0500″	Flood

Tools Required

75%

Tool Change Cost

75%

Cost Per Part
