There is a specific point of frustration that every machinist eventually hits on the lathe. The job is dialed in, the speeds and feeds are theoretically perfect, and the coolant is hitting the sweet spot; yet the cut still isn’t right. You might see inconsistent tool life, a subpar surface finish, or unexplained insert failure. Usually, the first instinct is to tweak the parameters by backing off the surface footage or fine-tuning the feed rate. However, if those adjustments don’t yield results, you are likely chasing your tail because the problem isn’t in the numbers. It is rooted in the insert geometry.
If your parameters are correct but the cut feels wrong, you are likely fighting the chip rather than the material. Geometry is the mechanical engine that forces the material to curl, fracture, and evacuate. When an insert “birdsnests,” it is often because the chipbreaker geometry is not matched to your depth of cut. If the chip does not engage the insert geometry with enough force, it will not snap. This is why a “Medium” geometry insert often fails in a light finishing pass. It is not because the speed is wrong, but because there is not enough material volume to engage the chip breaking features. Stabilizing a process requires matching the insert geometry to the specific volume of metal you are moving.

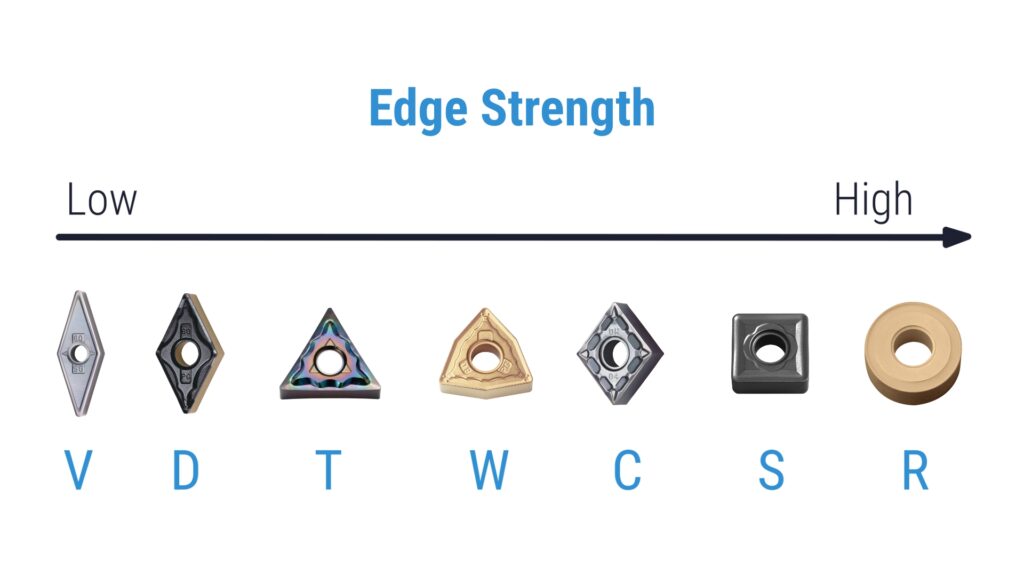

This stabilization starts with the structural footprint of the tool. Choosing an insert shape is a constant trade-off between accessibility, strength, and economics. Sharp, open shapes like 35 degree V-style (VNMG) or 55 degree D-style (DNMG) inserts are mandatory for profiling, but they are structurally weak and offer fewer usable edges.
Conversely, closed shapes like 80 degree C-style (CNMG) or Square (SNMG) inserts distribute cutting pressure across a larger foundation. While the SNMG is a staple in many shops for its economy, offering up to eight usable cutting edges, its real benefit is combining that cost-efficiency with extreme predictability under heavy roughing loads. When part geometry allows, SNMG inserts can be a great option. For even better economy, consider keeping a tool holder on hand that utilizes the 100-degree edges of your CNMG inserts for rough facing and turning. This improves both edge strength and your overall cost per part.
Once you have the right shape, you have to decide how that edge meets the part. This is not just a choice between sharp or dull; it is about how forces are applied to the machine and the workpiece. Positive geometries like CCMT’s act like slicing with a sharp knife. It reduces cutting forces, making it the standard choice for Swiss-type machines, small diameter boring, and gummy materials.
Conversely, inserts with negative geometry like CNMG’s act more like a wedge, requiring more horsepower and rigidity, but adding a massive amount of strength to the cutting edge. Because the 90-degree edge is supported by a significant volume of carbide, it can withstand the extreme pressures of heavy-duty machining. Furthermore, since negative inserts are typically double-sided, they offer twice the cutting edges of a positive insert, making them the industrial standard for high-volume, heavy-duty roughing.

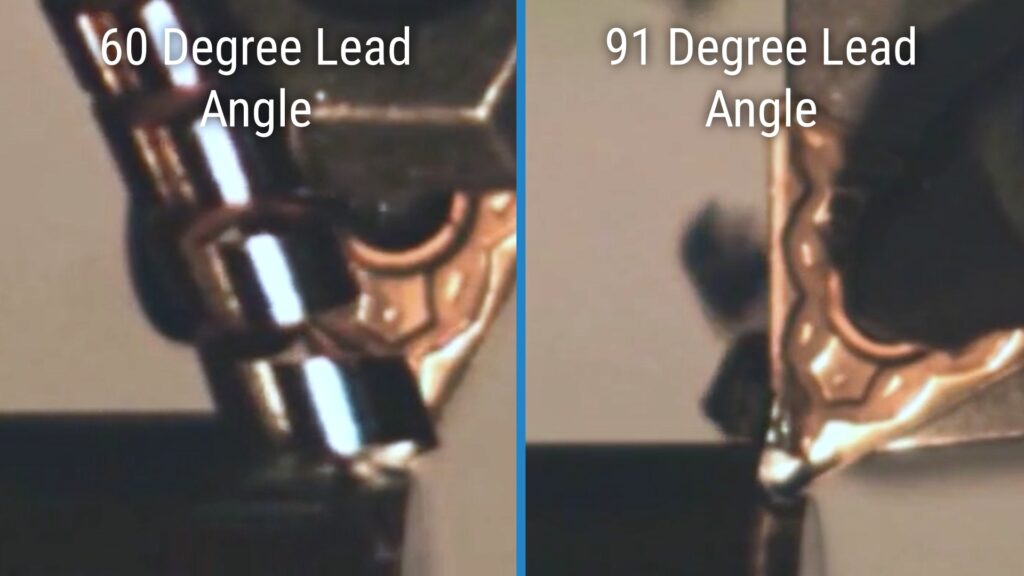

Lead angle is one of the most effective tools for managing force distribution, yet it is often the most ignored. A steep lead angle concentrates all the impact stress and pressure into one localized spot on the edge. This is the primary cause of notching at the depth of cut line, particularly in work-hardening materials like stainless or Inconel. By reducing the lead angle, you spread that same cutting load across a longer section of the carbide. This thins the chip and improves heat dissipation, allowing for higher productivity without overstressing the tool. However, shifting the lead angle also shifts the direction of the force, which can introduce vibration if your tool post or part stick-out lacks rigidity.

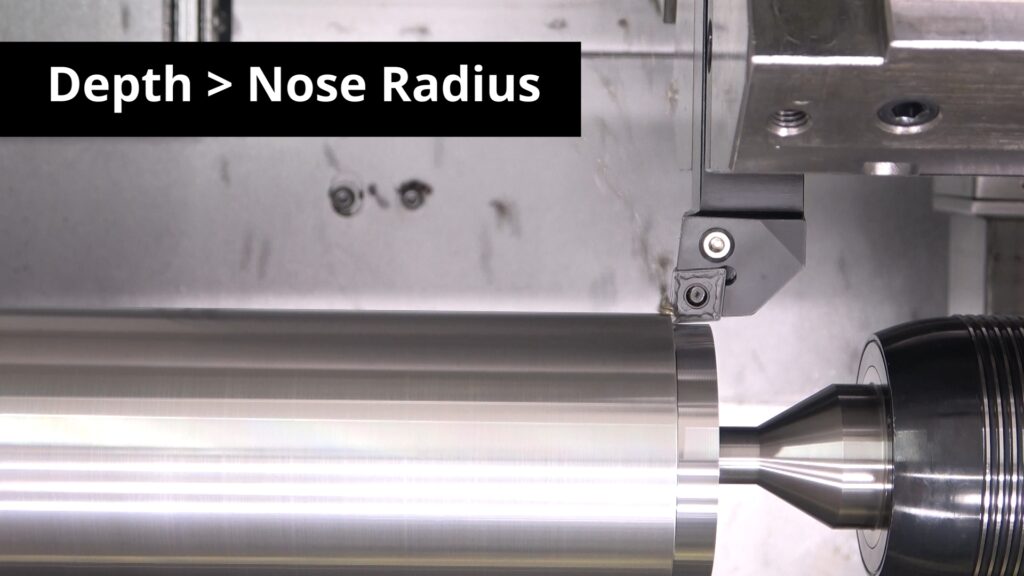

The nose radius is the final gatekeeper of part quality and setup stability. A larger radius strengthens the weakest part of the insert and improves finish potential, but it generates more radial force. This pressure actively tries to push the part away from the tool, which can lead to taper on long shafts and chatter on thin-walled parts. As a practical guideline, your depth of cut should generally stay deeper than the nose radius to ensure proper chip formation.

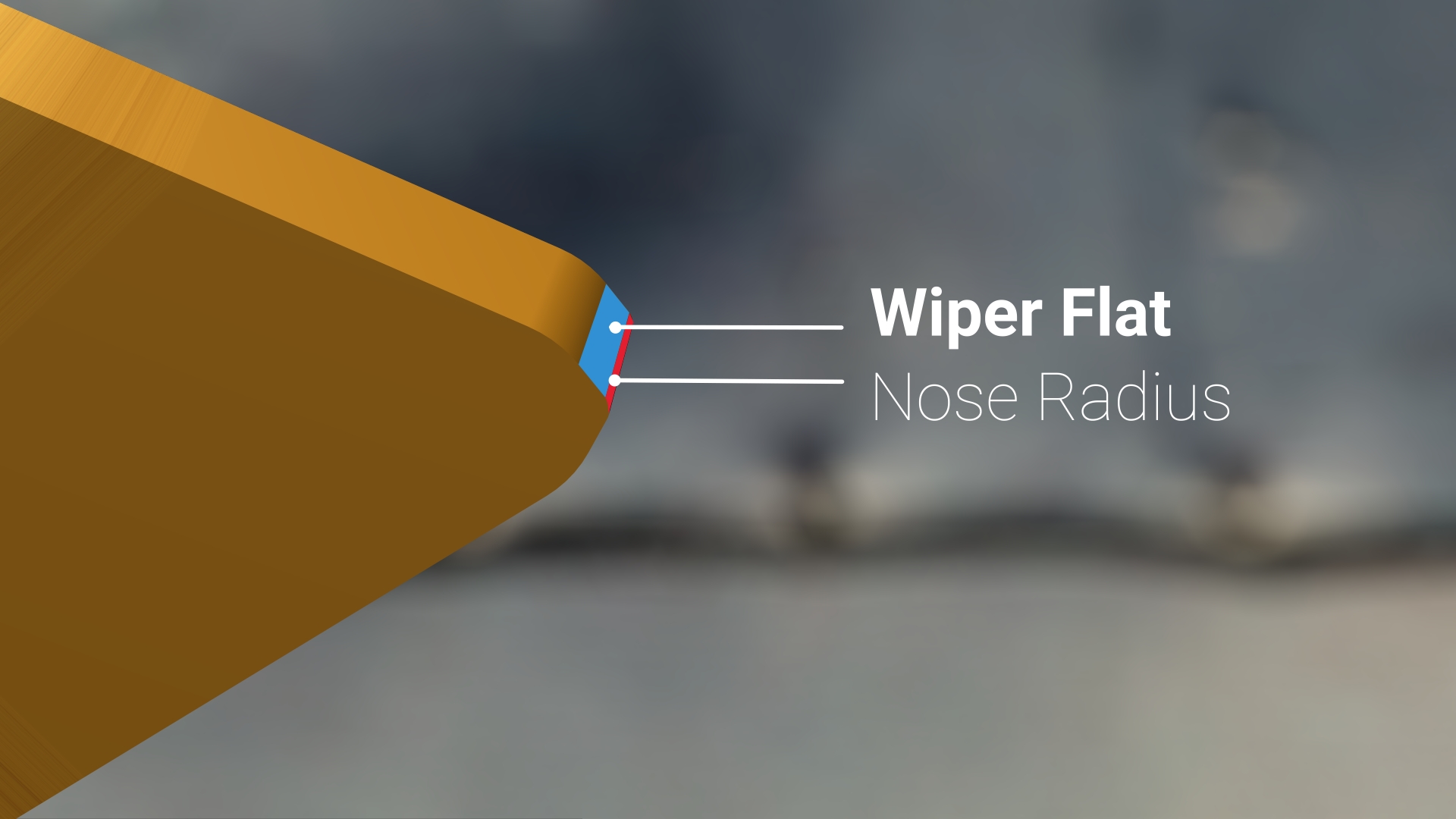

If you need to increase finish quality without compromising on feed rate, Wiper Geometry is the solution. A wiper flat smooths the surface over a wider contact area. This allows you to achieve the same surface finish at twice the feed rate or half the surface roughness at the same feed rate. If you are fighting chatter or vibration but still need a good surface finish, consider down-sizing the nose radius and trying a wiper geometry. Using a smaller nose radius, even with the wiper flat, can still reduce cutting pressure, while the wiper will often allow for better surface finishes than a larger radii standard insert.
Ultimately, insert geometry does not fail in a vacuum; it fails relative to the rigidity of your setup. Every choice you make, from an eight-edged SNMG to a productivity-boosting wiper flat, is a negotiation with the machine’s ability to hold a line. If the geometry is fighting the physics of the cut, no amount of dial-turning will save the part. Evaluate the shape for strength, the rake for pressure, the lead angle for heat, and the chipbreaker for control. When you align these variables into a single system, you stop guessing and start machining. Get the physics right, and the numbers will follow.
Q: How does chipbreaker geometry specifically prevent “birdnesting” in gummy materials?
A: In materials like low-carbon steel or aluminum, “birdnesting” occurs when the material’s ductility resists fracturing. Specialized chipbreakers use a more aggressive “raised island” or a tighter primary rake to force the chip into a smaller radius. This increases internal stress within the chip, ensuring it hits the back wall of the geometry with enough force to snap even when the material is highly malleable.
Q: Why should I choose a “cermet” grade over carbide for finishing passes?
A: While your geometry dictates the chip formation, the substrate material like cermet (ceramic-metallic) offers higher chemical wear resistance. For finishing, cermet inserts maintain a sharp cutting edge longer than coated carbide because they resist “built-up edge” (BUE). This allows you to utilize light-depth-of-cut finishing geometries without the risk of the material welding to the insert and ruining the surface finish.
Q: Can I use a Wiper insert for heavy roughing cycles?
A: Wiper geometry is primarily engineered for surface finish optimization at higher feed rates, not for heavy metal removal. Using a wiper during roughing can be counterproductive because the increased contact area of the “wiper flat” generates significantly more heat and radial pressure. For heavy roughing, a standard radius on a stable shape like an SNMG is preferred to prioritize edge strength and heat dissipation.
Q: What is the relationship between “Edge Preparation” (Honing) and tool life?
A: Beyond the macro-geometry (shape and rake), the micro-geometry—or “edge prep”—determines how the insert handles the initial impact. A “landed” or “honed” edge rounds the tip slightly to prevent microscopic chipping in heavy interruptions or scales. For continuous finishing, a “sharp” or “up-sharp” edge is better to reduce cutting pressure and prevent work-hardening the part.
Q: How does the “Approach Angle” differ from the Lead Angle in force distribution?
A: While the lead angle is the angle of the cutting edge relative to the workpiece, the approach angle is its complement, and both dictate the “Thinning Factor.” A larger lead angle (closer to 90 degrees) creates a thicker chip but reduces radial push. Conversely, a smaller lead angle thins the chip, allowing for higher feed rates but increasing the risk of vibration if the setup isn’t rigid.
Q: Why does my insert notch specifically at the Depth of Cut (DOC) line?
A: Notching is caused by “work-hardening” at the surface of the material or by the localized thermal shock where the atmospheric oxygen meets the cutting zone. This is a common failure in stainless steels and Inconel. To fix this, consider using an insert with a shallower lead angle or a round insert to spread the mechanical strain across a larger portion of the carbide edge, or varying your depths of cut to spread the notching over a wider area of the insert edge.
Q: When should I switch from a “M” (Molded) tolerance to a “G” (Ground) tolerance insert?
A: Molded (M-tolerance) inserts are the workhorses of general turning because they are cost-effective, but they have slight dimensional variances inherent to the sintering process. G-tolerance (Ground) inserts are precision-ground after sintering to offer much higher repeatability. You should consider switching to ground inserts when turning or boring small diameters or high-tolerance parts. Because the position of the cutting tip changes less from insert to insert, your offsets stay more consistent. Additionally, ground geometries often feature a sharper edge that cuts with less force, which is critical for maintaining accuracy on delicate or thin-walled features.
